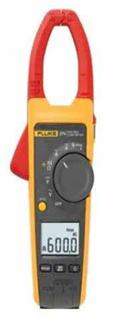

Fluke 374 True RMS AC/DC Clamp Meter, Fluke 374 Clamp Meter Pune, Fluke 374 Clamp Meter Suppliers Pune

Pravin Electronics & Electricals

Earth Tester

Product Catalogue

Measurement capability

600 A ac and dc current measurement with fixed jaw
2500 A ac current measurement with iFlex™ flexible current probe (sold separately)
600 V ac and dc voltage measurement
True-rms ac voltage and current for accurate measurements on non-linear signals
Frequency measurement to 500 Hz with both jaw and iFlex™ (Fluke 375 only)
Resistance measurement to 60 kΩ (Fluke 375) or 6000 Ω (Fluke 374) with continuity detection
Min, max, average and inrush recording to capture variations automatically
500 mV dc measurement range to interface with other accessories (Fluke 375 only)
000 µF capacitance measurement

Brand	Fluke
Model No	Fluke 374
AC Current Via Jaw Range	600 A
AC Current Via Jaw Max Resolution	0.1 A
AC Current Via Jaw Accuracy	2 % +/- 5 digits
DC Current Range	600 A
DC Current Max Resolution	0.1 A
DC Current Accuracy	2 % +/- 5 digits
Frequency Range	500 Hz
Frequency Max Resolution	0.1 Hz
Frequency Accuracy	0.5 % +/- 5 digits
Wire Capacity	750 MCM or 2-500 MCM

Features

iFlex™ flexible current probe expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
CAT IV 600V, CAT III 1000 V safety rating
Integrated low pass filter (Fluke 375 only) and state of the art signal processing allows for use in noisy electrical environments while providing stable readings.
Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
Ergonomic design fits in your hand and can be used while wearing personal protective equipment
Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement
Three-year warranty
Soft carrying case.
