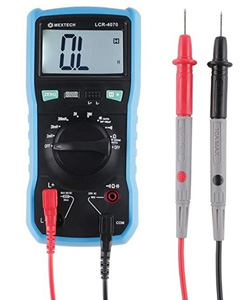

Mextech LCR-4070, Digital LCR Meter
| Model Name/Number | MEXTECH LCR-4070 |
| Brand | MEXTECH |
| Usage/Application | Laboratory |
| Color | BLUE & BLACK |
| Power Source | Standard 9 V battery |
| Dimension | 189 X 97 X 35 mm |
| I Deal In | New Only |
- Displaying: LCD Displaying
- Max. Displaying: 1999 (3 ½ Digit) Auto Polarity indication.
- Low battery indication
- Operation environment: (0~40) °C, RH.<80%.
- Power: 9V X 1
- Size: 189 X 97 X 35 mm
- Weight: Approx. 380g (Including Battery)
- Accessory: Operational Manual, Gift Box, Test Leads, And battery.
| Inductance (L) | Inductance (L) | ||
| Range | Accuracy | Resolution Measuring frequency | |
| 2mH | ±(2.0% 5d) | 1uH | Approx:200Hz |
| 20mH | 10uH | ||
| 200mH | 100uH | ||
| 2H | ±(5.0% 5d) | 1mH | |
| 20H | ±(5.0% 15d) | 10mH | |
| Range | Accuracy | Resolution Measuring frequency | |
| 2nF | ±(1.0% 5d) | 1pF | Approx:200Hz |
| 200 nF | 100 pF | ||
| 2uF | 1 pF | ||
| 20 uF | ±(2.0% 5d) | 10 pF | |
| 200 uF | ±(5.0% 5d) | 100 pF | Approx:16Hz |
| 1000 uF | ±(5.0% 25d) | 1 pF | |
| Range | Accuracy | Resolution | Approx:8Hz |
| 200Ω | ± (0.8% 5d) | 0.1Ω | |
| 2kΩ | ±(0.8% 3d) | 1Ω | |
| 20kΩ | 10Ω | ||
| 200kΩ | 100Ω | ||
| 2MΩ | 1kΩ | ||
| 20MΩ | ±(1.0% 15d) | 10kΩ | |
