Pravin Electronics & Electricals

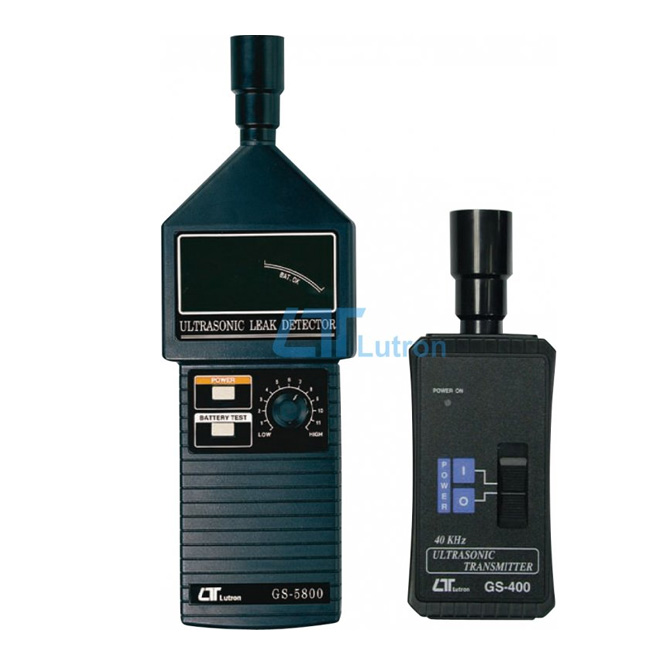

LUTRON GS 400 Ultrsonic Transmitter

LUTRON GS 400 Ultrsonic Transmitter
Product Catalogue
Frequency Response 20 KHz to 100 KHz
Power Supply DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent, Alkaline or
heavy duty type battery.
Power Consumption

Approx. DC 34 mA
Operating Temp. 0 to 50 ( 32 to 122 ).
Operating Humidity Less than 80% RH.
Weight Approx. 260 g/0.57 LB ( including battery ).
Size HWD 255 x 70 x 28 mm ( 10.0 x 2.8 x 1.1 inch ).
Optional Accessory Earphone, Model : EA-100
Features
  • Frequency Output 40 KHz.
  • Oscillator Circuit 640 KHz crystal time base & divided by 16.
  • Operating Temperature 0 °C to 50 °C ( 32 °F to 122 °F ).
  • Operating Humidity Less than 80% RH.
  • Power Supply DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent, Alkaline or heavy duty type battery.
  • Power Consumption Approx. DC 7.5 mA.
  • Weight 122 g/0.27 LB ( included battery ).
  • Size 146 x 50 x 26 mm ( 5.7 x 2.0 x 1.0 inch ).
