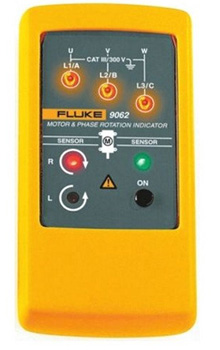

Fluke 9062 Motor and Phase Rotation Indicator

Fluke 9062 Motor and Phase Rotation Indicator
Product Catalogue

The unique Fluke 9062 provides rotary field and motor rotation indication with the benefits of contact-less detection. Purpose made for commercial and industrial environments, the Fluke 9062 provides rapid indication of 3 phase rotation using test leads supplied or can be used to determine motor rotation on synchronous and asynchronous 3 phase motors. The contact-less detection is ideal for use on motors where the shaft is not visible. The included test probes have a variable clamping range for safe contact, also in industrial sockets.

Key Features
  • 3 phase indication
  • Indication of phase rotation
  • Indication of motor rotation direction
  • Contact free determination of the rotation direction of running motors
Operating Temperature 0 deg C to +400 deg C (32 deg F to 1040 deg F)
Operating Altitude 2000 m (1.2 miles)
Pollution Degree 2
Type of Protection IP40
Nominal Voltage Rotary
Direction		 1 to 400 V AC
Nominal Voltage Phase
Indication		 120 to 400 V AC
Frequency Range 2 to 400 Hz
Test Currents Less Than 3.5 mA
Nominal Test Voltage 1 to 400 V AC
Nominal Test Currents Less Than 3.5 nA
Battery 9 V Alkaline,IEC 6LR61
Current Consumption Max 20 mA
Battery Life Minimum 1 Year for Average Use
