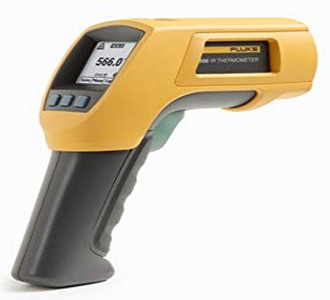

Fluke 566 Infrared Thermometer
| Brand | Fluke |
| Display Resolution | 0.1 deg C / 0.1 deg F |
| Power | 2 AA/LR6 Batteries |
| Model No | Fluke-566 |
| Infrared Temperature Range | -40 deg C to 650 deg C (-40 deg F to 1202 deg F) |
| Infrared Response Time | Less Than 500 msec |
| Thermocouple Type K input Temperature Range |
-270 deg C to 1372 deg C (-454 deg F to 2501 deg F) |
| Minimum Spot Size | 19 mm (0.75 in) |
| Operating Temperature | 0 deg C to 50 deg C (32 deg F to 122 deg F) |
| Storage Temperature | -20 deg C to 60 deg C (-40 deg F to 140 deg F) |
| Bead Thermocouple Type K Range | -40 deg C to 260 deg C (-40 deg F to 500 deg F) |
- Measure -40 °C to 800 °C /-40 °F to 1472 °F (568) or -40 °C to 650 °C/-40 °F to 1202 °F (566)
- Easily access advanced features with the soft-key buttons and graphical display
- Measure smaller objects from further away, with a distance-to-spot ratio of 50:1 (568) or 30:1 (566)
- Compatibility with all standard miniconnector K-type thermocouples allows you to preserve your thermocouple investments
- Confidently measure a wide variety of surfaces with the adjustable emissivity feature, including a built-in material table
- Capture up to 99 points (568) or 20 point (566) of data, for downloading and recalling later
- Easily trend and analyze data with included FlukeView® Forms software (568)
- See your data right away without leaving the site, using the USB (568) and your laptop for "Hands-free" datalogging
- Confidently troubleshoot equipment with 1 % measurement accuracy
- Versatile interface with six languages from which to choose
- Two-year warranty.
